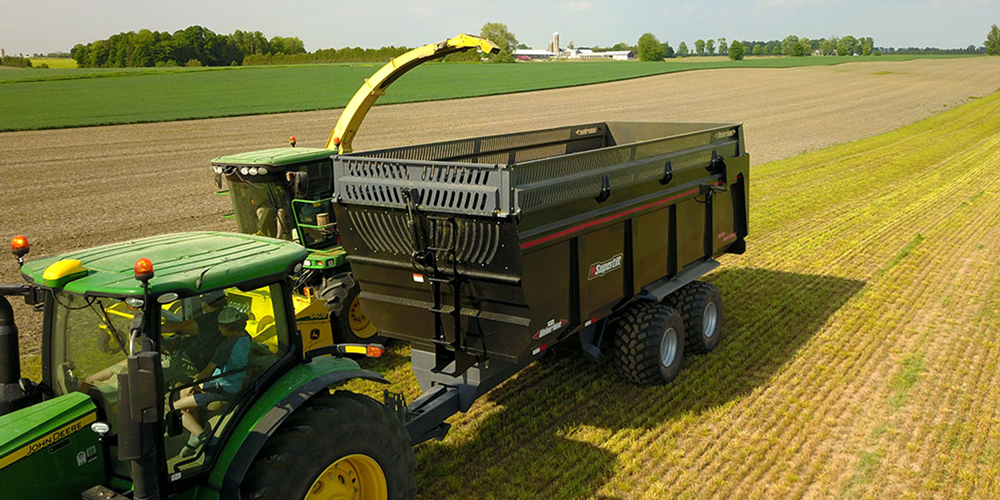

Supertilt High Capacity XT

Built for fast dump times and increased capacity, the Super-Tilt XT is engineered to move more material in less time—load after load. Profiled sides, optimized bottom box angles, and a front-to-back taper ensure quick, efficient unloading and a clean-out every time.

The XT Series raises the bar by including popular upgrades as standard equipment. Features include 24" folding side extensions, a 24" hydraulic front jack, suspension hitch, 750 flotation tires, and a new premium paint scheme—delivering increased performance, long-term durability, and built-in value from day one.

When efficiency matters and capacity counts, the Super-Tilt High Capacity XT Trailer is built to perform.

Add-On Options

  • 6" extra width
  • 25,000 lb spindles and hubs
  • 30 ton spring suspension axles
  • Floor upgrade to doubled cross members (12" spacing) and 1/4" floor
  • Articulating Ace Cat 4 Pintle Hitch
  • Additional Grain Chutes Installed
  • Set of Safety Chains
  • Set of four 800/45 x 26.5 flotation tires
  • 4 Wheel Brake
  • Custom Colour

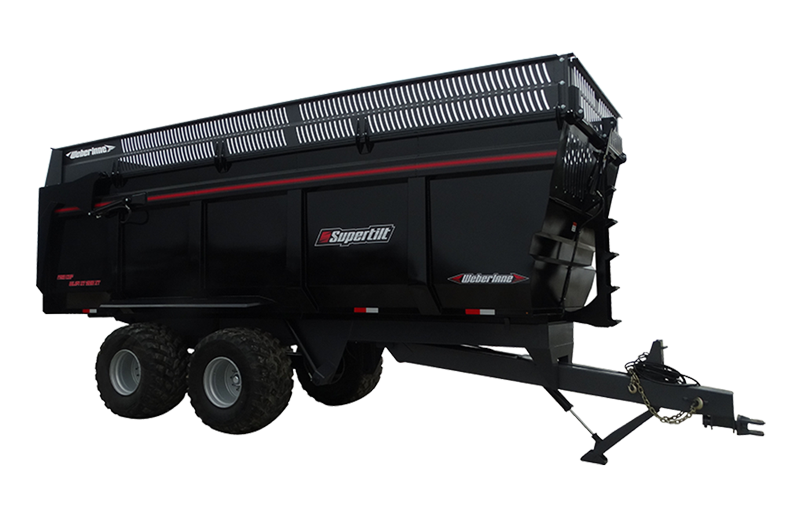

WL24 ST2010 XT

25 TON CAPACITY

STANDARD FEATURES:

  • 8 1/2' X 22' box with 6' sides + extensions
  • 750/45 x 22.5 flotation tires
  • Industrial 2-wheel hydraulic brakes

WL22 ST2010 XT

25 TON CAPACITY

STANDARD FEATURES:

  • 9' X 24' box with 6' sides + extensions
  • 750/45 x 22.5 flotation tires
  • Industrial 2-wheel hydraulic brakes

WL24 ST2030T3S XT

30 TON CAPACITY TRI-AXLE STEERING

STANDARD FEATURES:

  • 10' X 24' box with 6' sides
  • 750/45 x 22.5 flotation tires
  • Industrial 6-wheel hydraulic brakes

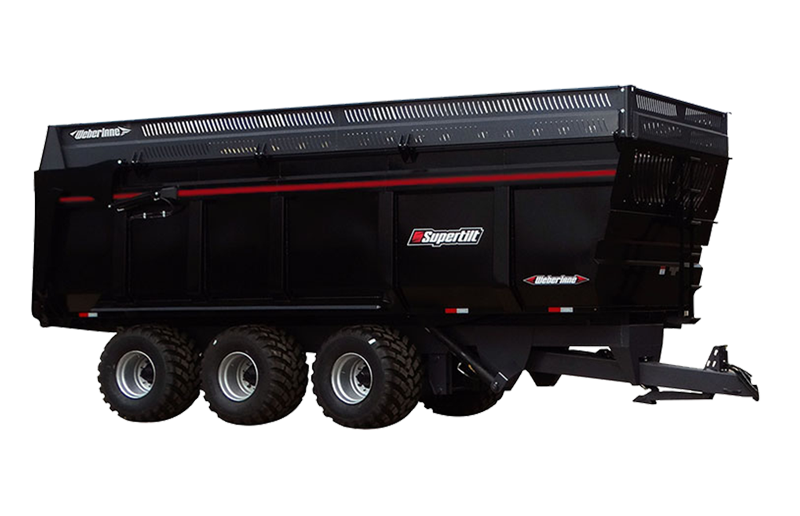

WL26 ST2030T3S XT

30 TON CAPACITY TRI-AXLE STEERING

STANDARD FEATURES:

  • 10' X 26' box with 6' sides
  • 750/45 x 22.5 flotation tires
  • Industrial 6-wheel hydraulic brakes
