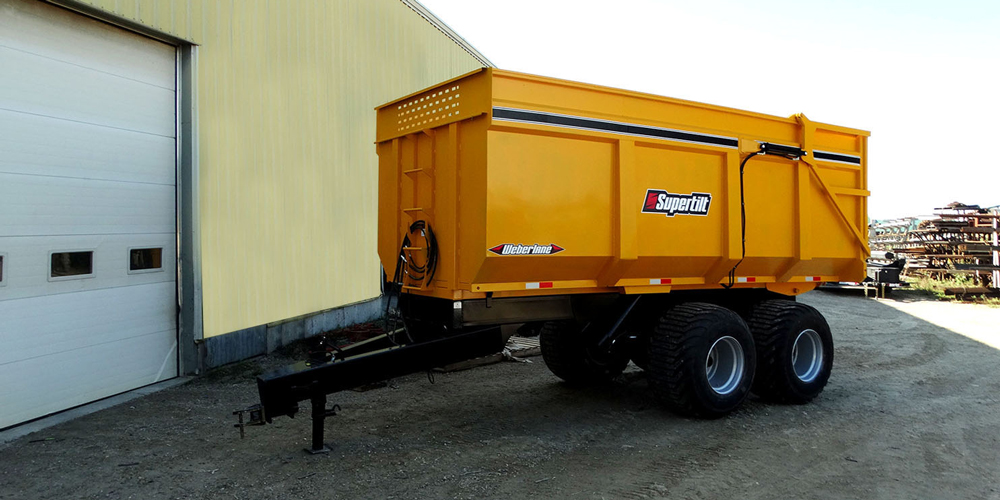

Supertilt High Capacity

Super-Tilt High Capacity Trailers make unloading simple, fast, and dependable. ​Equipped with a twin telescopic hoist under the box, light package, and hydraulic tailgate with grain chute, they deliver reliable performance every time. The tapered box, angled bottom, and profiled sides ensure material flows out easily, minimizing manual clean-up.

Built for farmers who demand both capacity and convenience, these trailers handle heavy loads without compromise.

Add-On Options

  • 6" extra width
  • 25,000 lb spindles and hubs
  • 30 ton spring suspension axles
  • Floor upgrade to 12" cross members spacing and 1/4" floor plate
  • Articulating Ace Cat 4 Pintle Hitch
  • Suspension Tongue
  • Additional Grain Chutes Installed
  • Set of Safety Chains
  • Set of four 800/45 x 26.5 flotation tires
  • 4 Wheel Brake
  • 16' - 24' Expanded Metal Side Extensions
  • Custom Colour

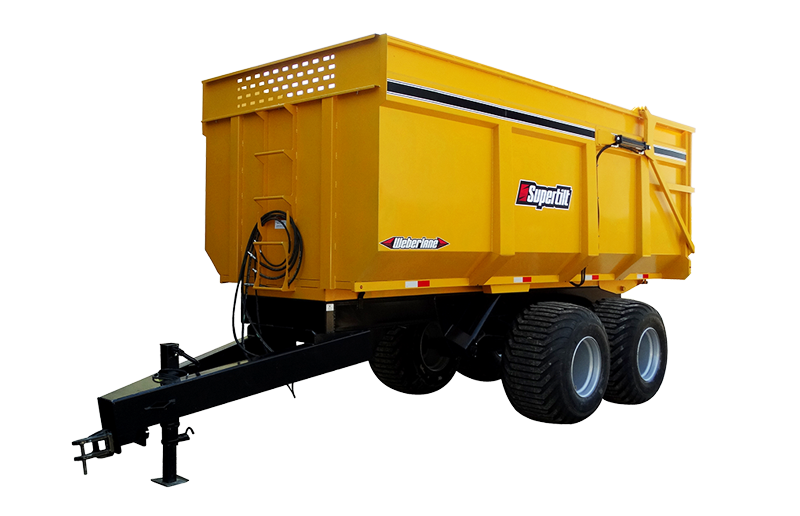

WL18 ST2010

18' BOX / 22 TON CAPACITY

STANDARD FEATURES:

  • 8 1/2' X 18' box with 6' sides
  • Industrial 2-wheel hydraulic drum brakes

SELECT YOUR TIRE SIZE:

  • Set of four 550/60 x 22.5 flotation tires
  • Set of four 700/40 X 22.5 flotation tires
  • Set of four 710/40 x 22.5 flotation tires

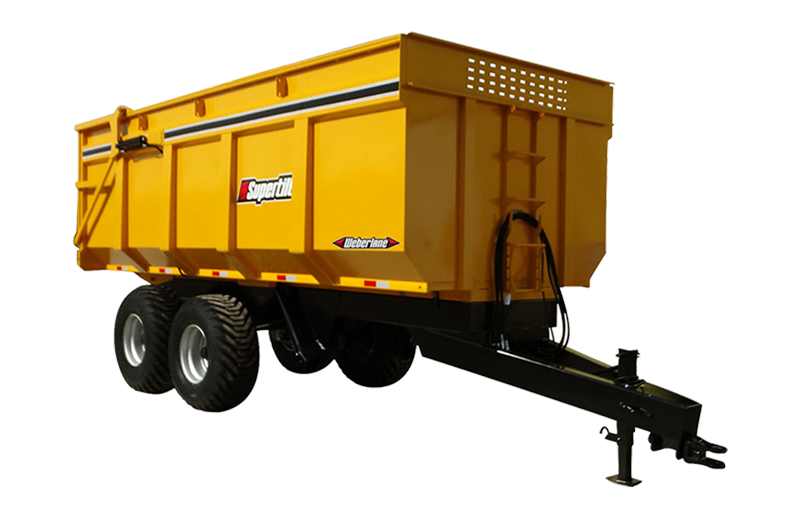

WL20 ST2010

20' BOX / 24 TON CAPACITY

STANDARD FEATURES:

  • 8 1/2' X 20' box with 6' sides
  • Industrial 2-wheel hydraulic drum brakes

SELECT YOUR TIRE SIZE:

  • Set of four 550/60 x 22.5 flotation tires
  • Set of four 700/40 X 22.5 flotation tires
  • Set of four 710/40 x 22.5 flotation tires

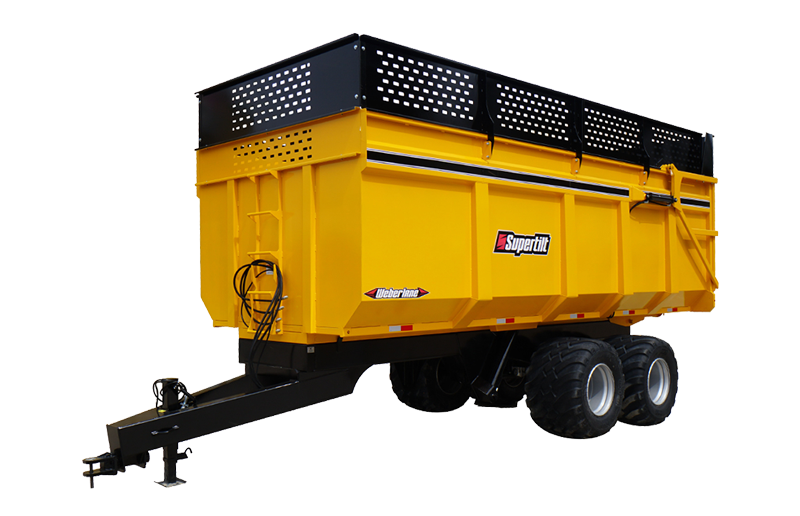

WL24 ST2030

24' BOX / 30 TON CAPACITY

STANDARD FEATURES:

  • 10' X 24' box with 6' sides
  • Industrial 4-wheel hydraulic brakes

SELECT YOUR TIRE SIZE:

  • Set of four 710/40 X 22.5 flotation tires
  • Set of four 750/40 x 22.5 flotation tires

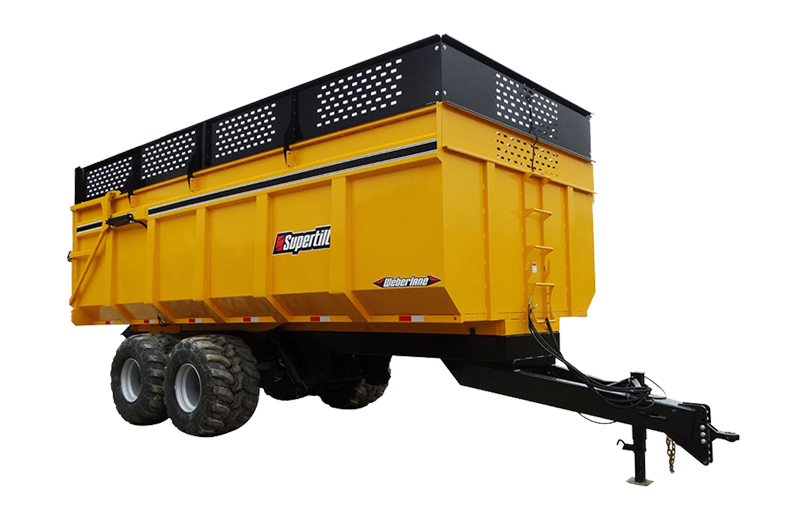

WL26 ST2030

26' BOX / 30 TON CAPACITY

STANDARD FEATURES:

  • 10' X 26' box with 6' sides
  • Industrial 4-wheel hydraulic brakes

SELECT YOUR TIRE SIZE:

  • Set of four 710/40 X 22.5 flotation tires
  • Set of four 750/40 x 22.5 flotation tires
